| Marketing Description |
| Fiber Channel Host Bus Adapters (HBA) enable data exchange over large distances and extend your existing FUJITSU server systems by including communication interfaces using high-speed communication technology. All connections are redundant and hot-pluggable. The combination of hardware and software exemplifies the high-performance quality of communication. The number of system restarts is reduced thanks to optimized software and extended error check functions help improve the integrity of your company's information. |
| General |

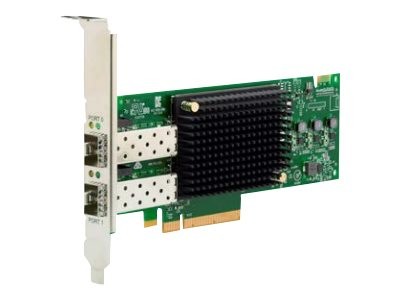

| Device Type | Host bus adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| PCI Specification Revision | PCIe 1.0, PCIe 2.0 |
| Networking |
| Ports | 16Gb Fibre Channel x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Fibre optic |
| Data Link Protocol | 16Gb Fibre Channel (Short Wave) |
| Fibre Channel | FC-AL, FC-AL-2, FC-DA, FC-FLA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-Tape, FC-SP, FCP-4, FCP, FCP-2, FC-PI-2, FC-FS-2, FC-GS-5, FC-PI-4, FC-GS-6, FC-HBA, FC-PI-5, FC-LS-2, FC-SP-2, FC-MJS, FC-SB-4, RFC2625, SSC-2, SBC-2, SPC-3, SBC-3, SPC-4, SSC-3 |
| Data Transfer Rate | 14.025 Gbps |
| Status Indicators | Link/activity |
| Features | Auto-negotiation |
| Expansion / Connectivity |
| Interfaces | 2 x 16Gb Fibre Channel - LC multi-mode - x 2 |
| Software / System Requirements |
| Software Included | Emulex OneCommand Manager |
| Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Compatibility Information |
| Designed For | Fujitsu PRIMERGY CX2550 M2, CX2550 M2 Liquid Cooling, CX2560 M4 air cooling, CX2560 M4 liquid cooling, CX2560 M5, CX2570 M2, CX2570 M4 PCI air cooling, CX2570 M4 SXM2 liquid cooling, RX1330 M4, RX2510 M2, RX2520 M4, RX2520 M5, RX2530 M2, RX2530 M4, RX2530 M4 Liquid Cooling, RX2530 M5, RX2530 M5 Liquid Cooling, RX2530 M6, RX2540 M2 Storage Spaces, RX2540 M4, RX2540 M5, RX2540 M6, RX4770 M3, RX4770 M4, RX4770 M4 liquid cooling, RX4770 M4 Performance, TX1330 M4, TX2550 M4, TX2550 M5 |
