| Тип на продукта | Дънна платка |
| Производител | ASROCK |
| Чипсет | AMD B550 |
| Процесор | AMD Ryzen Series 3rd Generation AMD Ryzen Series 4th Generation AMD Ryzen Series 5th Generation |
| Цокъл на процесора | Socket AM4 |
| Технология на паметта | DDR4 SDRAM |
| Честота на паметта | 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2667MHz(PC4-21300) 2933MHz(PC4-23400) 3200MHz(PC4-25600) |
| Общ брой слотове за памет | 4 |
| Максимално количество памет | 128 GB |
| Аудио | High Definition Audio Premium Blu-ray audio support |
| Форм фактор | DIMM 288-pin |
| Размери | 244 мм, 305 мм |
| Гаранционен срок (месеци) | 36 |

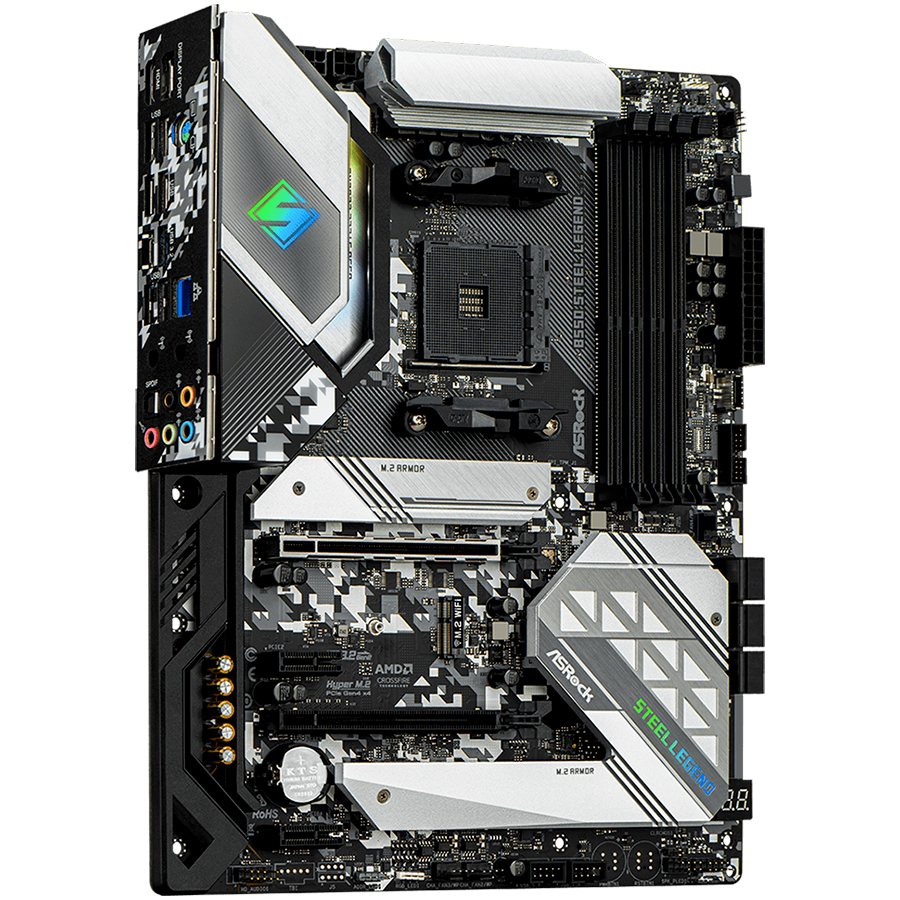

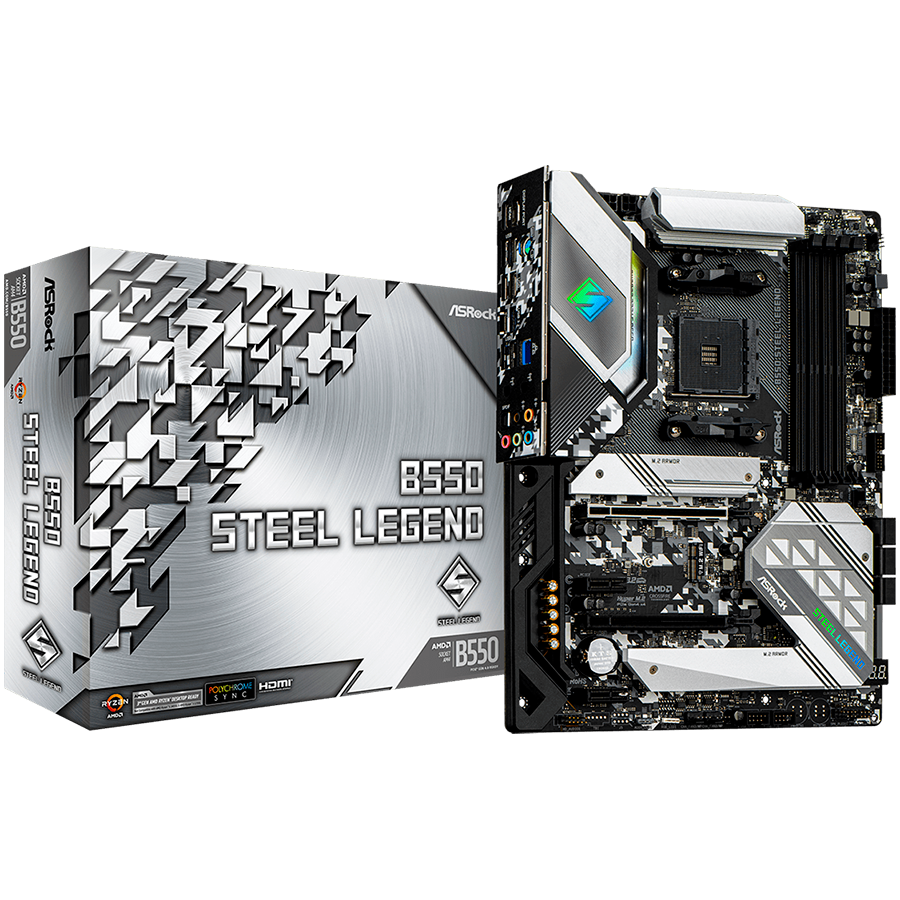

| Description B550 STEEL LEGEND | |
|---|---|
| Cpu's supported | - Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*; - Digi Power design; - 14 Power Phase design |
| Memory type | - Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Vermeer) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 45 |
| Chipset | - AMD B550 |
| Graphics | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports***; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports; - Supports Microsoft® PlayReady |
| Expansion slots | AMD Ryzen series CPUs (Vermeer and Matisse); - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*; AMD Ryzen series APUs (Cezanne and Renoir); - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*; AMD Ryzen series APUs (Picasso); - 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)*; - 2 x PCI Express 3.0 x1 Slots; - Supports AMD Quad CrossFireX™ and CrossFireX™; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*; - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)**; - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** |
| I/o | - 2 x Antenna Mounting Points; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x Optical SPDIF Out Port; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection); - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 4 x USB 2.0 Ports (Supports ESD Protection)*; - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Connectors | - 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 2 x RGB LED Headers*; - 2 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector (15μ Gold Audio Connector); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection); - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) - 1 x Dr. Debug with LED |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec); - Premium Blu-ray Audio support; - Supports Surge Protection; - 120dB SNR DAC with Differential Amplifier; - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets); - Pure Power-In; - Direct Drive Technology; - PCB Isolate Shielding; - Impedance Sensing on Rear Out port; - Individual PCB Layers for R/L Audio Channel; - Gold Audio Jacks; - 15μ Gold Audio Connector; - Nahimic Audio |
| Lan | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE |
| Bios | - 256Mb AMI UEFI Legal BIOS with GUI support; - Supports Plug and Play; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment |
| Form factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - 2oz Copper PCB |
| Os | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Warranty | 36 Months |
Забележителна Дънна платка ASROCK B550 STEEL LEGEND
Заложете на върховата технология с Дънна платка ASROCK Main Board Desktop B550 STEEL LEGEND за невероятно бърз и стабилен компютър.
Технически параметри:
| Socket | AM4 | Висока съвместимост и производителност на процесора. |
| RAM слотове | 4x DDR4 | Гъвкава конфигурация за високи скорости и големи обеми на паметта. |
| PCIe слотове | 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 2x PCIe 3.0 x1 | Поддръжка за бързи и мощни видео карти и разширения. |
| LAN | 2.5G LAN | Бърз и стабилен интернет за плавен онлайн опит. |
| USB портове | 1x USB-C | Бърз и удобен трансфер на данни. |
Приложения на продукта:
Дънната платка ASROCK Main Board Desktop B550 STEEL LEGEND е идеална за построяване на високопроизводителен настолен компютър.
Често задавани въпроси:
Дънна платка ASROCK B550 STEEL LEGEND е съвместима с Ryzen процесори?
Да, Дънна платка ASROCK B550 STEEL LEGEND е съвместима с AM4 съвместими процесори от серия Ryzen.
Колко SATA порта има Дънна платка ASROCK B550 STEEL LEGEND?
Дънната платка ASROCK B550 STEEL LEGEND разполага с общо 6 SATA порта за свързване на устройства за съхранение на данни.
Защо да закупите Дънна платка ASROCK B550 STEEL LEGEND?
Дънната платка ASROCK Main Board Desktop B550 STEEL LEGEND ви осигурява несравнима производителност и надеждност за вашата компютърна система.
